Name: MSI MPG Z790 CARBON WIFI | Placa Base
Brand: MSI e-Shop
SKU: msi-mpg-z790-carbon-wifi-placas-base
Availability: InStock

🚚 ¡Envío gratis a todo el mundo en todos los pedidos!Comprar ahora

Home Tienda

MSI MPG Z790 CARBON WIFI | Placa Base

MPG Z790 CARBON WIFI

Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
Compatible con memoria DDR5, hasta 7600+(OC) MHz
Experiencia de juego ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Diseño de alimentación mejorado: Alimentación directa en 19+1+1 fases, Core Boost, Memory Boost
Solución térmica premium: Disipador térmico ampliado con tubo de calor, almohadillas térmicas MOSFET de 7 W/mk, almohadillas térmicas de estrangulamiento adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
LAN 2.5G y solución Intel Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida
AUDIO BOOST 5: deleite a sus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
PCB de alta calidad: PCB de 8 capas fabricado con material de nivel de servidor
Escudo de E/S preinstalado: Mejor protección EMI y mayor comodidad de instalación

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 (Qty) M.2_1 Source (From CPU) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_2 Source (From CPU) • Supports up to PCIe 5.0 x4 • Supports 22110/2280/2260 devices M.2_3 Source (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_4 Source (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_5 Source (From Chipset) • Supports up to PCIe 4.0 x4 / SATA mode • Supports 2280/2260 devices 6x SATA 6G (Qty) *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
LAN	Intel® 2.5Gbps LAN
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.
USB	4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3*, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LED FEATURE	1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED

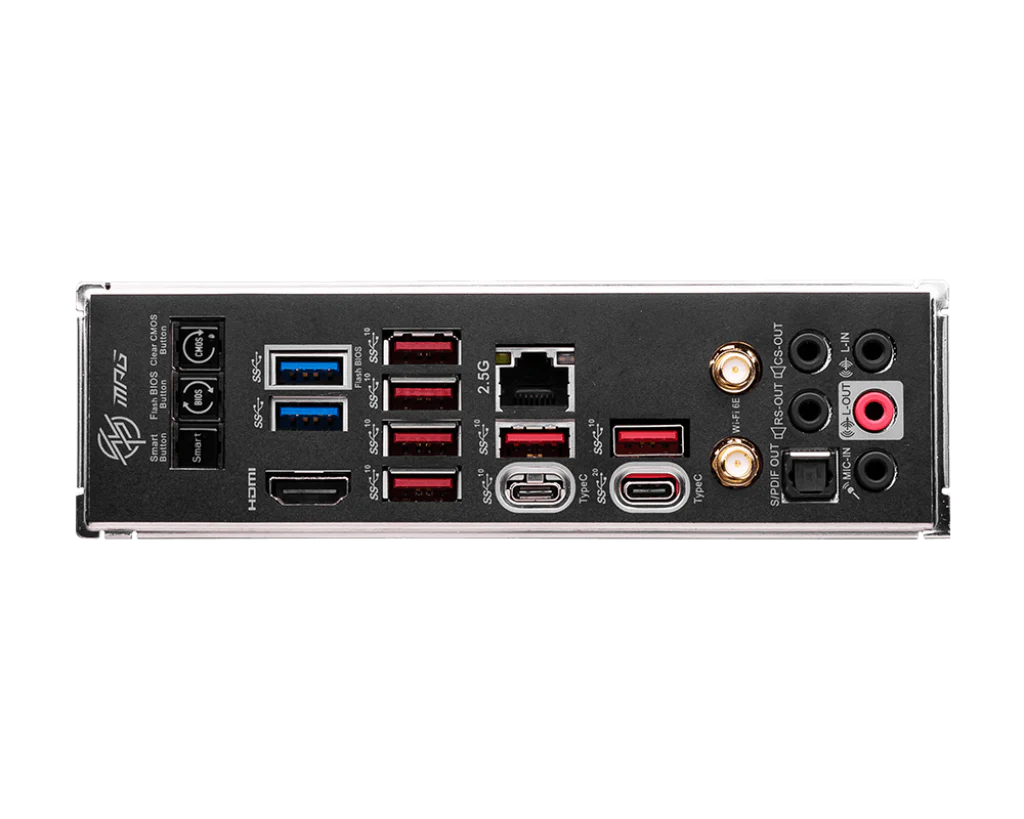

BACK PANEL PORTS	Clear CMOS / Flash USB 5 Gbps (Type-A) 2.5G LAN USB 10Gbps (Type-A) Audio Connectors Smart Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out
PCB Info	ATX 243.84mmx304.8mm
BOX CONTENT

$107.83

Original: $359.43

-70%

MSI MPG Z790 CARBON WIFI | Placa Base—

$359.43

$107.83

Original: $359.43

-70%

MSI MPG Z790 CARBON WIFI | Placa Base—

$359.43

$107.83

Información del producto

Envío y devoluciones

Description

MPG Z790 CARBON WIFI

Compatible con procesadores Intel® Core™ de 14ª/ 13ª/ 12ª generación, procesadores Intel® Pentium® Gold y Celeron® para zócalo LGA 1700.
Compatible con memoria DDR5, hasta 7600+(OC) MHz
Experiencia de juego ultrarrápida: Ranura PCIe 5.0, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Diseño de alimentación mejorado: Alimentación directa en 19+1+1 fases, Core Boost, Memory Boost
Solución térmica premium: Disipador térmico ampliado con tubo de calor, almohadillas térmicas MOSFET de 7 W/mk, almohadillas térmicas de estrangulamiento adicionales y M.2 Shield Frozr para un sistema de alto rendimiento y una experiencia de juego ininterrumpida.
LAN 2.5G y solución Intel Wi-Fi 6E: Solución de red mejorada para uso profesional y multimedia. Ofrece una conexión de red segura, estable y rápida
AUDIO BOOST 5: deleite a sus oídos con una calidad de sonido de estudio para disfrutar de la experiencia de juego más envolvente.
PCB de alta calidad: PCB de 8 capas fabricado con material de nivel de servidor
Escudo de E/S preinstalado: Mejor protección EMI y mayor comodidad de instalación

Chipset	INTEL Z790
CPU	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel^® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Audio	Realtek^® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-Bit/384 kHz playback on front panel
Storage	5x M.2 (Qty) M.2_1 Source (From CPU) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_2 Source (From CPU) • Supports up to PCIe 5.0 x4 • Supports 22110/2280/2260 devices M.2_3 Source (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_4 Source (From Chipset) • Supports up to PCIe 4.0 x4 • Supports 2280/2260 devices M.2_5 Source (From Chipset) • Supports up to PCIe 4.0 x4 / SATA mode • Supports 2280/2260 devices 6x SATA 6G (Qty) *PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_2 slot.
LAN	Intel® 2.5Gbps LAN
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	2x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices * SATA_A1~A2 do not support RAID function.
USB	4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 6x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH	Intel^® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth^® 5.3*, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
LED FEATURE	1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LED
BACK PANEL PORTS	Clear CMOS / Flash USB 5 Gbps (Type-A) 2.5G LAN USB 10Gbps (Type-A) Audio Connectors Smart Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 20Gbps (Type-C) Wi-Fi / Bluetooth Optical S/PDIF Out
PCB Info	ATX 243.84mmx304.8mm
BOX CONTENT
